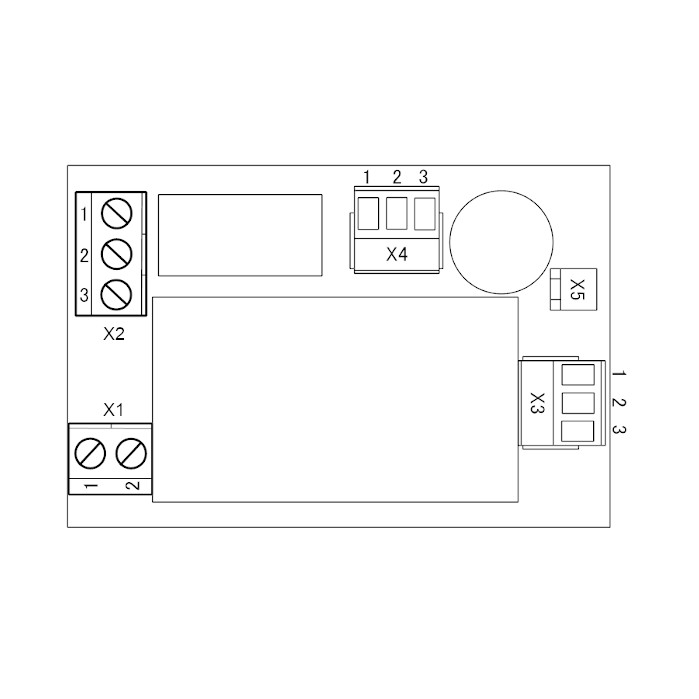

APPV2X150 Fire door automation

Device power supplies

230 V +/- 15%, 48..52 Hz, 20 VA max.

2 A 30V DC

Magnet power supplies

24V = +/-5% (-20% in UPS mode)

300mA max (sum of current both magnets)

second magnet release with 5 sec. delays after first

Senzori dima

optical or termical sensor as ODD801/TD81

current of normal operation - 3-15 mA

malfunction / break - < 3ma

malfunction / short curcit - > 30mA

Alarm - > 15mA, < 30mA

Nadzirana tipka / kontakt

Activation button with interruption and short circuit monitoring as the smoke sensors

Activation of the key activates the actuation (standard closed-NC contact state)

UPS (option)

30 min. work without power 230V~

Dimension

45 x 68 x 30 mm H x W xD

Temperature conditions

5-55 ^oC

Certificate

EN60950:2006

EMC

EN 61000-6-1:2007, EN 61000-6-3:2007

Degree of Protection

IP20 affter instalattion in mounting frame IP40

Assembly

In mounting frame TEM 3 or more model (as NM30)

Auxiliary relay (option)

Switch contact - 2 A 250 V AC
